300-3000L Glass-lined Open Distillation Tank

Categories

• > Glass-lined Equipment
  • Glass-lined Reactors
  • Glass-lined Storage Tanks
  • Glass-lined Distillation Tanks
  • GMP Standard Glass-lined Equipment
  • Glass-lined Towers
  • Glass-lined Plate Condensers
  • Non-standard Glass-lined Equipment
  • Glass-lined Pipes and Fittings
  • Glass-lined Agitators
  • Glass-lined Drive Systems
  • Glass-lined Equipment Accessories
  • PTFE Spraying
  • High-performance Imported Enamel
• > Stainless Steel Equipment
• > Carbon Steel Equipment
• > Technical Features
• > Supporting Equipment

•

He-Huang
Chemical Equipment

• +86 137 7509 3108

• sales@huanghe-river.com

Contact us

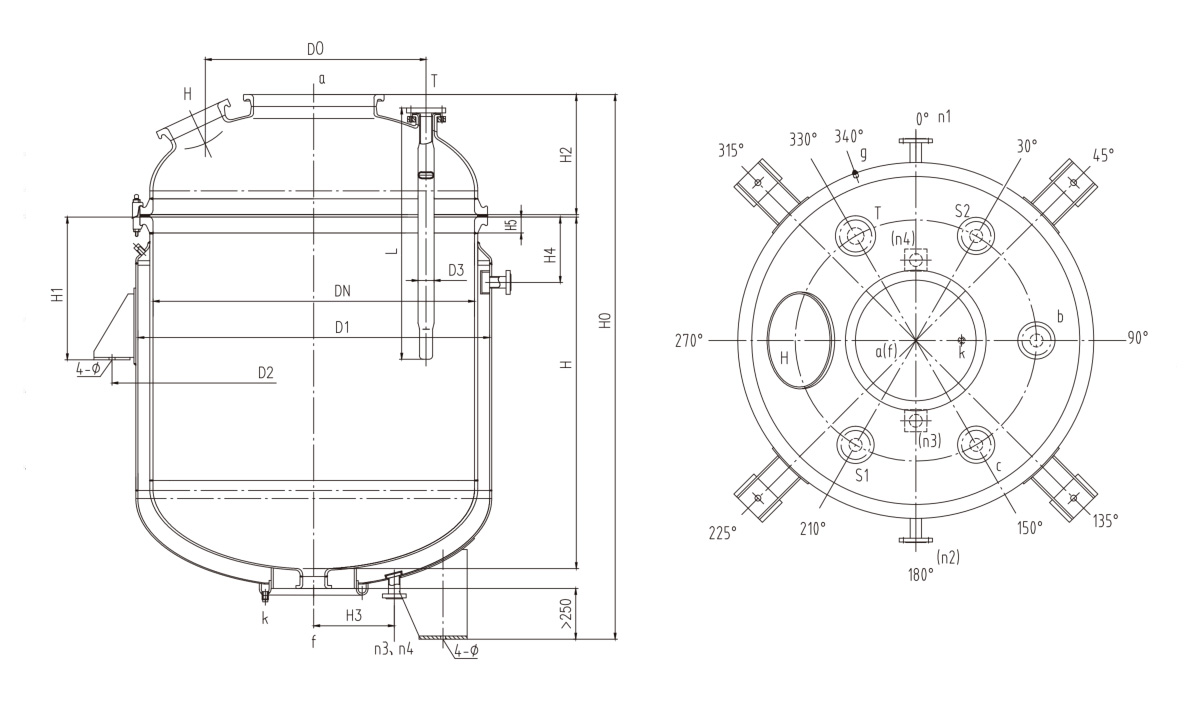

Nominal Volume VN/L	Vessel Nominal Diameter		Vessel Head Nozzle Nominal Diameter						Jacket Nozzle Nominal Diameter
	K Type	F Type	Distillation Nozzle a	Manhole M	Thermometer Nozzle T	Sight Glass S1、S2	Spare Hole b	Discharge Port f	Input Outlet		Air Release Valve g	Drain Port K
									nl、n2	n3、n4
300	800		150	125	65	80	80	80	25	25	G3/8”
500	900		200	150	125	100	80	80	32	32	G3/8”
800	1000		250	200	125	100	80	80	32	32	G3/8”
1000	1200		300	200	125	100	80	100	32	32	G3/8”
		1200	400	200	125	100	80	100	32	32	G3/8”
1500	1300		400	400X300	150	100	80	100	40	40	G3/8”
		1300	400	400X300	150	100	80	100	40	40	G3/8”
2000	1450		400	400X300	150	125	100	125	50	50	G3/4”	G1/2"
		1450	400	400X300	150	125	100	125	50	50	G3/4"
3000	1600		500	400X300	150	125	100	125	65	65	G3/4"
		1600	500	400X300	150	125	100	125	65	65	G3/4"
5000	1750		600	400X300	200	125	125	125	65	65	G3/4”
		1900	600	400X300	200	125	125	125	65	65	G3/4”
6300		1900	600	400X300	200	125	150	125	65	65	G3/4"
8000		2200	700	400X300	200	125	150	125	80	80	G3/4"

Nominal Volume  VN/L	Nominal Diameter DN/mm		Total Volume VJ/L	Jacket Heat Transfer Area /tn2	Do /mm	Eh / mm	D2 /mm	D3 /mm	D4  /mm	H0 /mm
	K Type	F Type
300	800		369	1.9	560	900	1200	32	—	1504
500	900		573	2.6	630	1000	1300	50	—	1734
800	1000		878	3.7	700	1100	1405	50	740	1940
1000	1200		1132	4.5	840	1300	1640	50	950	1904
		1200	1132	3.9	840	1300	1640	50	950	1500
1500	1300		1714	5.2	910	1450	1790	65	1020	2234
		1300	1704	4.6	910	1450	1790	65	1020	1800
2000	1450		2530	6.7	1020	1600	2070	65	1200	2325
		1450	2300	7.4	1020	1600	2070	65	1200	2205
3000	1600		3380	9.3	1120	1750	2225	65	1300	2700
		1600	3811	9.74	1120	1750	2225	65	1300	2550
5000	1750		5435	13.4	1220	1900	2420	80	1400	3335
		1900	5734	12.4	1330	2050	2570	80	1450	2730
6300		1900	6868	14.8	1330	2050	2570	80	1450	3120
8000		2200	8976	16.5	1540	2350	2870	80	1650	3120
